Page 11 - ALASFIRE -Automotive Product Catalog

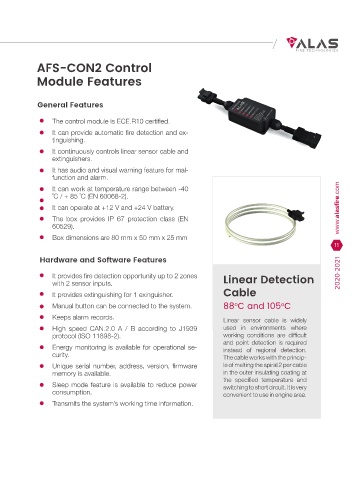

AFS-CON1 Control AFS-CON2 Control
Module Features Module Features

General Features General Features
• The control module is ECE.R10 certified.
• The control module is ECE.R10 certified.
• It can provide automatic fire detection and extingu-
ishing. • It can provide automatic fire detection and ex-
tinguishing.
• It continuously controls linear sensor cable and ex-
tinguishers. • It continuously controls linear sensor cable and
extinguishers.
• It has audio and visual warning feature for malfunc- • It has audio and visual warning feature for mal-
tion and alarm.
function and alarm.
• It can work at temperature range between -40 ˚C / +
85 ˚C (EN 60068-2) . • It can work at temperature range between -40
˚C / + 85 ˚C (EN 60068-2).
• It can operate at +12 V and +24 V battery.
• It can operate at +12 V and +24 V battery. www.alasfire.com
• The box is in IP 67 protection class and the connec- • The box provides IP 67 protection class (EN
tor used is in IP 40 class. Optionally, IP 67 protection 60529).
class can be provided by changing the connector
type. • Box dimensions are 80 mm x 50 mm x 25 mm
10 11
• Box dimensions are 154 mm x 65 mm x 39 mm
Hardware and Software Features
Hardware and Software Features • It provides fire detection opportunity up to 2 zones 2020-2021
Linear Detection with 2 sensor inputs. Linear Detection
• It provides fire detection opportunity up to 4 zones
with 4 sensor inputs. Cable 185 C • It provides extinguishing for 1 exinguisher. Cable
o
• It provides extinguishing opportunity up to 2 zones. • Manual button can be connected to the system. 88 C and 105 C
o
o
Linear sensor cable is widely
• Manual button can be connected to the system via used in environments where • Keeps alarm records. Linear sensor cable is widely
electronic card without additional installation.
working conditions are difficult • High speed CAN.2.0 A / B according to J1939 used in environments where
• Keeps alarm records. and point detection is required protocol (ISO 11898-2). working conditions are difficult
instead of regional detection. and point detection is required
• High speed CAN.2.0 A / B according to J1939 pro- The cable works with the prin- • Energy monitoring is available for operational se- instead of regional detection.
tocol (ISO 11898-2). curity.
ciple of melting the spiral 2 per The cable works with the princip-
• Energy monitoring is available for operational secu- cable in the outer insulating • Unique serial number, address, version, firmware le of melting the spiral 2 per cable
rity. coating at the specified tem- memory is available. in the outer insulating coating at
perature and switching to short the specified temperature and
• Unique serial number, address, version, firmware circuit. It is very convenient to • Sleep mode feature is available to reduce power switching to short circuit. It is very
memory is available. consumption.
use in engine area. convenient to use in engine area.
• Sleep mode feature is available to reduce power • Transmits the system’s working time information.
consumption.
• Transmits the system’s working time information.

www.alasfire.com
